How to Avoid Ice Dam Risks: The Ultimate Building Science Guide

How to avoid ice dam risks the intersection of building science and winter weather presents few challenges as physically destructive or financially taxing as the formation of ice dams. While often perceived as a roofing failure, an ice dam is actually a symptom of a complex thermodynamic imbalance within the entire building envelope. When the temperature of the roof deck exceeds the freezing point while the eaves remain at ambient outdoor temperatures, a cycle of melting and refreezing begins. This process creates a ridge of ice at the roof’s edge that traps subsequent meltwater, forcing it upward under shingles through hydrostatic pressure.

The gravity of this issue extends far beyond the immediate nuisance of icicles. Left unmanaged, ice dams compromise the structural integrity of the roof assembly, saturate insulation, and foster a localized environment conducive to the proliferation of wood-decaying fungi. Because the damage often begins in the interstitial spaces between the roof deck and the ceiling, homeowners frequently remain unaware of the problem until water begins to penetrate the interior living space. By then, the mitigation costs have already escalated from simple preventive measures to comprehensive structural restoration.

Addressing these risks requires a departure from reactive “emergency” solutions, such as salt pucks or mechanical chipping, and a move toward a holistic understanding of heat transfer. One must examine the house as a single, integrated system where air sealing, insulation levels, and ventilation pathways work in concert. A failure in any one of these pillars undermines the others, rendering partial fixes ineffective. This article serves as a definitive examination of the mechanisms, economic drivers, and systemic strategies necessary for long-term protection against the structural threats posed by winter ice accumulation.

Understanding “how to avoid ice dam risks”

The fundamental challenge in learning how to avoid ice dam risks is moving beyond the visual symptoms. Many property owners mistakenly believe that the ice itself is the problem. In reality, the ice is merely a biological marker for an “unintentional furnace” effect. If the roof deck is cold, snow remains as snow. If the roof deck is warm, snow melts. The management of this risk is, therefore, a management of heat loss.

A common misunderstanding involves the over-reliance on “cold-roof” ventilation. While increasing airflow through the attic is a critical component, it is often treated as a panacea. If a building has significant “air bypasses”—unsealed gaps around chimney flues, recessed lighting, or plumbing stacks—even the most robust ventilation system will struggle to dissipate the concentrated plumes of rising heat. Effective management requires a dual-track approach: stopping the heat from entering the attic in the first place (air sealing) and ensuring that the heat that does escape is swiftly removed (ventilation).

Furthermore, there is a risk in oversimplifying the solution by adding more insulation. Fiberglass batts, for example, are effective at slowing conductive heat transfer but do almost nothing to stop convective air movement. If a homeowner adds thick layers of insulation without first sealing air leaks, they may inadvertently create a “blanket” that keeps moisture trapped against the wood, exacerbating rot while doing little to prevent the melting cycle that feeds the ice dam.

Evolution of Building Envelopes and Thermal Bypass

How to avoid ice dam risks historically, the American home was built with high-permeability materials and lacked the airtightness seen in modern construction. While these older homes were drafty and energy-inefficient, they rarely suffered from systemic ice damming because the entire attic was essentially an outdoor space. As the energy crises of the 1970s and 1980s prompted a push for “tight” homes, the building industry inadvertently created a new set of thermal problems.

As we increased insulation levels (R-value), the temperature difference between the living space and the attic grew more pronounced. Small leaks became concentrated “hot spots.” The evolution of the modern roof, with its complex valleys and dormers, further complicated the hydraulic path of snowmelt. We moved from simple, steep-pitched gables that shed snow effectively to architecturally intricate designs that create “pockets” where snow and ice can accumulate undisturbed. Understanding this historical trajectory explains why “standard” building practices often fail in high-snow-load regions; we are fighting the physics of modern comfort against the realities of a cold climate.

Conceptual Frameworks for Ice Mitigation How To Avoid Ice Dam Risks

To effectively diagnose and resolve these issues, practitioners utilize several mental models that clarify the relationship between heat and moisture.

1. The Stack Effect Model

This framework views the home as a vertical chimney. Warm air is less dense than cold air and rises to the highest point in the house. This creates positive pressure at the ceiling level, forcing warm, moist air through every microscopic crack into the attic. Managing ice dam risk means breaking the “stack” by creating a continuous air barrier at the ceiling line.

2. The Net Free Area (NFA) Balance

Airflow requires a balance between intake (at the eaves) and exhaust (at the ridge). If a roof has massive ridge vents but blocked soffits, the system creates a vacuum that pulls warm air from the house into the attic to compensate. This framework emphasizes that ventilation is a fluid dynamic problem, not just a hardware installation problem.

3. The Thermal Bridge Framework

Even with perfect insulation, certain structural members—such as top plates of walls or chimney masonry—act as “bridges” that conduct heat directly to the roof deck. Recognizing these bridges allows for targeted intervention, such as using spray foam or rigid foam board to “decouple” the structural heat from the roof surface.

Core Categories of Intervention and Management

The strategies for mitigating ice dam risks can be broadly categorized into passive structural improvements and active mechanical interventions.

Category	Primary Mechanism	Pros	Cons
Air Sealing	Stopping convective heat loss at the source.	Long-term fix; lowers energy bills.	Labor-intensive; requires attic access.
Ventilation	Removing heat that enters the attic.	Low cost; prevents moisture buildup.	Ineffective if intake vents are blocked.
Heat Cables	Melting channels through the ice.	Immediate relief for existing dams.	High electricity cost; does not fix the root cause.
Ice & Water Shield	Waterproof membrane under shingles.	Secondary defense against leaks.	Expensive; does not prevent the ice dam itself.
Mechanical Removal	Steam or roof raking.	Quick pressure relief.	Dangerous; potential for shingle damage.

Decision Logic for Intervention How To Avoid Ice Dam Risks

For a new construction or a total reroof, the logic dictates a “defense-in-depth” approach: 100% air sealing, R-60 insulation, and a balanced NFA ventilation system. For retrofitting an existing structure, the priority must be air sealing first. Active systems like heat cables should only be viewed as a “failsafe” for architectural designs where proper ventilation is physically impossible, such as in low-slope areas or cathedral ceilings.

Real-World Scenarios How To Avoid Ice Dam Risks

Scenario A: The “Cape Cod” Half-Story

In a classic 1.5-story home, the slanted ceilings of the upstairs bedrooms are often the site of massive ice dams.

• The Constraint: There is no attic space to crawl into for sealing or insulating.

• The Failure: Heat transfers directly through the rafters to the roof deck.

• The Solution: A “hot roof” conversion using closed-cell spray foam directly against the underside of the roof deck, or a “vented over-roof” where a second roof deck is built over the original to allow airflow between the two layers.

Scenario B: The Clogged Soffit

A modern suburban home with adequate insulation still develops ice dams.

• The Constraint: Insulation was blown in by a contractor who didn’t use baffles.

• The Second-Order Effect: The insulation expanded into the eaves, completely cutting off the intake air.

• The Solution: Physical removal of the insulation from the eave area and installation of rigid baffles to ensure a 2-inch air gap between the insulation and the sheathing.

Planning, Cost, and Resource Dynamics

The financial burden of ice damming is rarely just the cost of the roof. It is a compounding economic event.

Action Item	Estimated Cost (USD)	Resource Intensity	Longevity
Professional Air Sealing	$1,500 – $4,000	High (Specialized labor)	Permanent
Attic Insulation Upgrade	$2,000 – $5,000	Moderate	25+ Years
Roof Raking (Self-managed)	$50 – $100 (Tool cost)	High (Manual labor)	Seasonal
Steam Ice Removal	$500 – $1,000 / visit	Moderate (Contracted)	Temporary
Structural Repair (Post-Leak)	$5,000 – $20,000+	Very High	Variable

The opportunity cost of failing to address the root cause is staggering. A homeowner might spend $800 annually on steam removal and an extra $40/month on heating bills due to air leaks. Over ten years, that exceeds $12,000—money that could have easily funded a permanent structural fix with change to spare.

Technological Support Systems and Strategies

1. Thermal Imaging (Infrared): The most effective diagnostic tool. By viewing a house from the outside in winter, “heat plumes” indicate exactly where air leaks are occurring.

2. Blower Door Testing: Depressurizing the house to identify the cumulative “hole” size in the building envelope.

3. Hygrometers: Monitoring attic humidity to ensure that ventilation is effectively removing moisture along with heat.

4. Self-Regulating Heat Cables: Unlike older constant-wattage cables, these adjust their heat output based on the ambient temperature, increasing efficiency.

5. Smart Roof Sensors: Emerging IoT devices that can detect moisture under the shingles or measure the weight of snow accumulation to alert owners before a dam forms.

6. Closed-Cell Spray Foam: Provides both an R-value and a class-1 air/vapor barrier, making it the “nuclear option” for difficult-to-solve thermal bypasses.

The Risk Landscape: Compounding Structural Failures How To Avoid Ice Dam Risks

The taxonomy of ice dam risk involves more than just water in the walls. We must consider the “Compounding Failure Loop.”

• Stage 1: The Thermal Failure. Heat escapes, melting snow.

• Stage 2: The Hydraulic Failure. Water backs up under shingles.

• Stage 3: The Material Failure. Insulation becomes wet. Wet insulation loses its R-value, becoming a conductor of heat rather than a resistor.

• Stage 4: The Acceleration. Because the insulation is now wet, more heat escapes the house, melting snow even faster, creating a larger ice dam.

• Stage 5: The Biological Failure. Once the wood and drywall are saturated, mold spores begin to colonize. This can happen in as little as 48–72 hours after the initial leak.

Maintenance Governance and Adaptive Monitoring

A robust strategy for how to avoid ice dam risks requires a calendar-based governance model.

Pre-Winter Checklist (October/November)

• Gutter Sanitation: Organic debris (leaves/twigs) slows the exit of meltwater, providing a “skeleton” for ice to grow on.

• Downspout Verification: Ensure water is exiting away from the foundation.

• Interior Audit: Check weatherstripping on attic hatches and pull-down stairs. These are often the largest “open windows” into the attic.

Winter Monitoring (January/February)

• The “First Melt” Observation: After the first heavy snow, observe which areas of the roof melt first. These are your thermal “hot spots.”

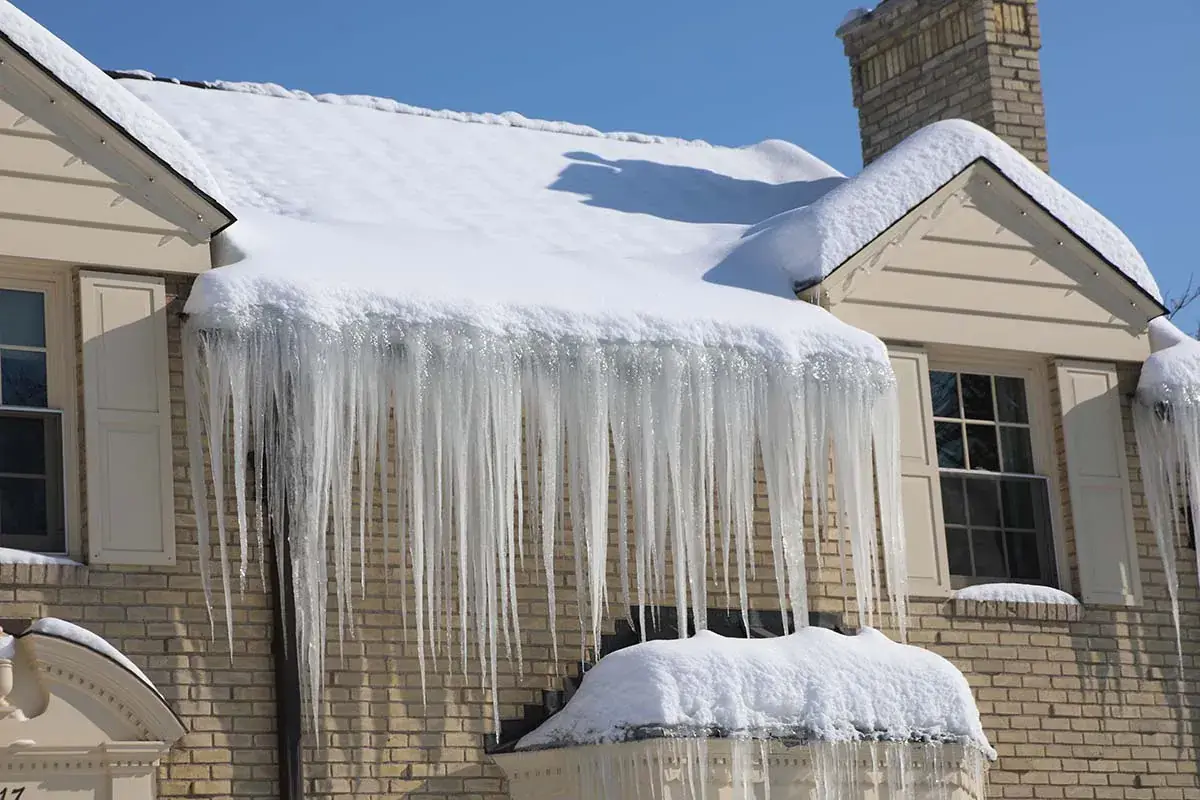

• Icicle Analysis: Small, clear icicles are often normal. Massive, cloudy icicles that start halfway up the roof slope are a definitive signal of an ice dam in progress.

Measurement, Tracking, and Evaluation

Evaluation of success is both qualitative (visual) and quantitative (thermal).

• Leading Indicator: The temperature delta between the attic and the outdoors. In a well-performing system, these should be within 10 degrees of each other.

• Lagging Indicator: The presence of “tide marks” or staining on the attic rafters or floor.

• Documentation Example 1: Annual “Snow Map” — A simple sketch of the roof showing where snow remains and where it clears first.

• Documentation Example 2: Thermal Imaging Report — A baseline photo of the house in winter to compare against future years after improvements are made.

Common Misconceptions and Oversimplifications

• “My gutters caused the ice dam.” Gutters do not cause ice dams; they only provide a place for them to hang. A house without gutters will still develop ice dams at the eave.

• “New shingles will stop the leaks.” Shingles are designed to shed water moving downward. They are not waterproof against standing water or water moving upward.

• “I have plenty of insulation, so I’m safe.” If the insulation is not accompanied by an air barrier, heat will “wind-wash” right through it.

• “Salt pucks are a good solution.” The chemicals in these pucks are corrosive to aluminum gutters and can damage the asphalt in shingles. They are an emergency-only tactic.

• “Ventilation is only for summer heat.” Winter ventilation is arguably more important because it carries away the moisture that would otherwise turn into frost on the underside of your roof.

• “Metal roofs don’t get ice dams.” While snow slides off metal more easily, the temperature physics remain the same. Ice can still form at the cold eaves of a metal roof if the thermal bypasses aren’t fixed.

Conclusion

The mitigation of ice dam risks is a profound exercise in building stewardship. It requires the property owner to look past the visible ice and address the invisible movement of heat and air. Success in this arena is not achieved through a single product or a quick fix, but through a commitment to the fundamental principles of thermodynamics. By sealing the envelope, balancing the ventilation, and maintaining a rigorous seasonal monitoring program, one can transform a vulnerable structure into a resilient one. Ultimately, the goal is a “cold roof”—a simple concept that requires a sophisticated, systemic approach to execute correctly.
